CMS_2019_I1719955

A measurement for inclusive 2- and 3-jet events of the azimuthal correlation between the two jets with the largest transverse momenta, $\Delta\phi_{12}$, is presented. The measurement considers events where the two leading jets are nearly collinear ("back-to-back") in the transverse plane and is performed for several ranges of the leading jet transverse momentum. Proton-proton collision data collected with the CMS experiment at a center-of-mass energy of 13 TeV and corresponding to an integrated luminosity of 35.9 $\text{fb}^{-1}$ are used.

Filter plots:

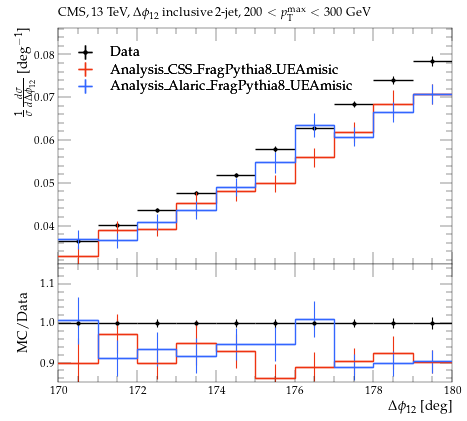

📊 d01-x01-y01:

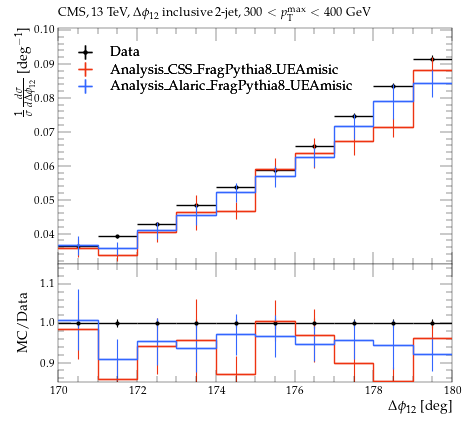

📊 d02-x01-y01:

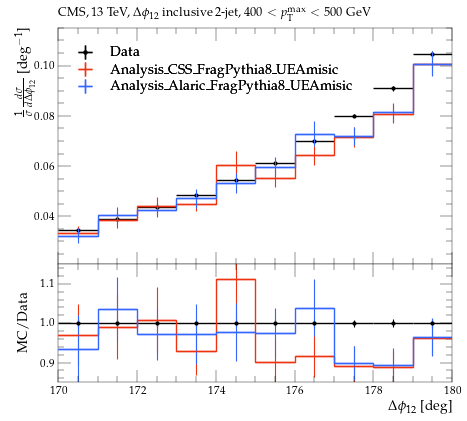

📊 d03-x01-y01:

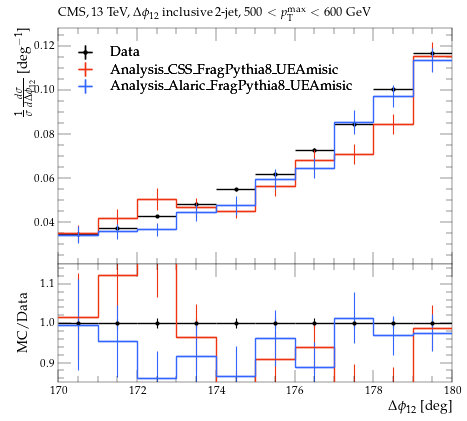

📊 d04-x01-y01:

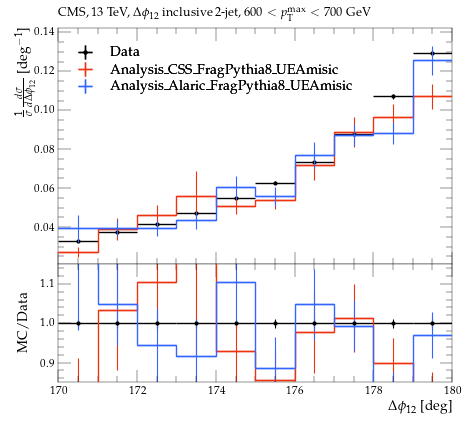

📊 d05-x01-y01:

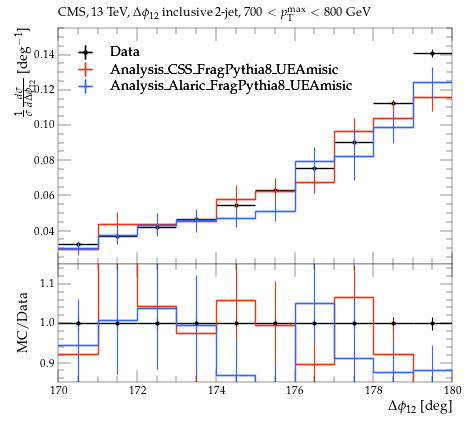

📊 d06-x01-y01:

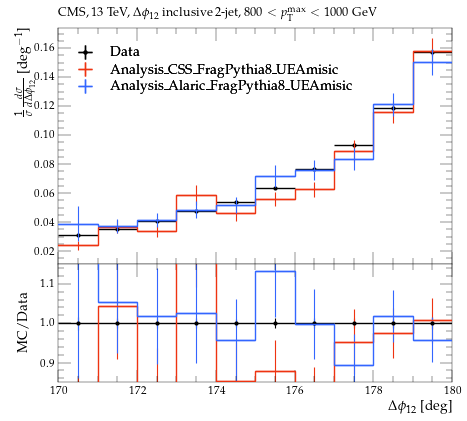

📊 d07-x01-y01:

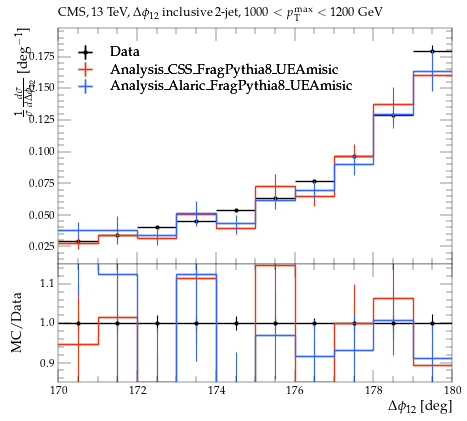

📊 d08-x01-y01:

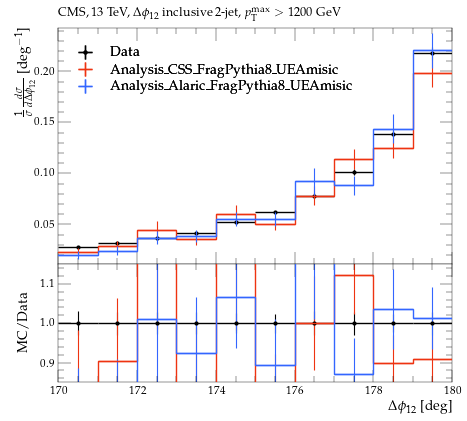

📊 d09-x01-y01:

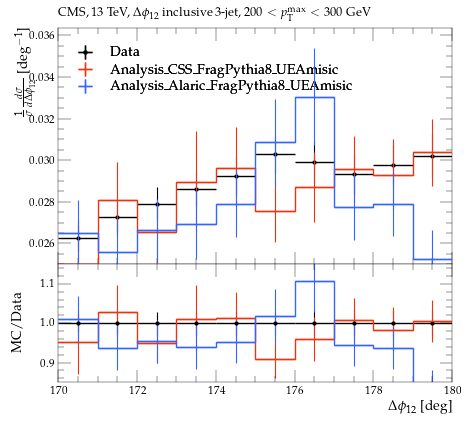

📊 d10-x01-y01:

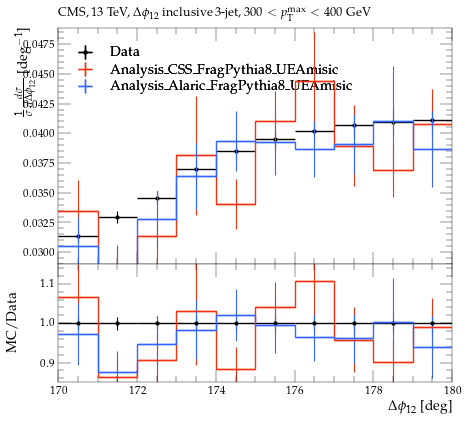

📊 d11-x01-y01:

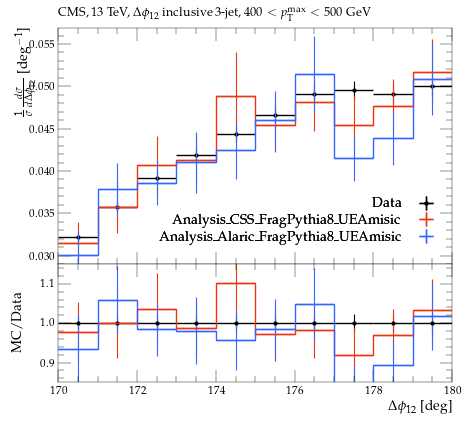

📊 d12-x01-y01:

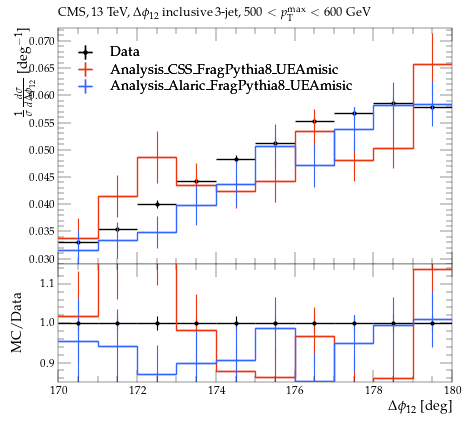

📊 d13-x01-y01:

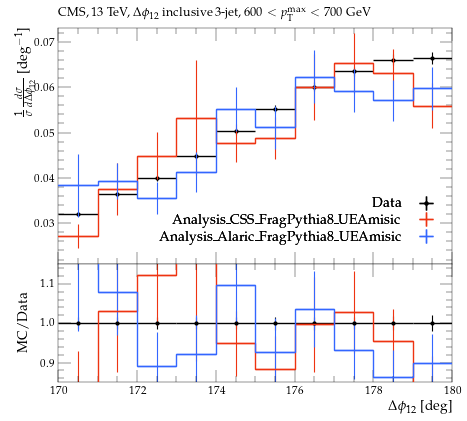

📊 d14-x01-y01:

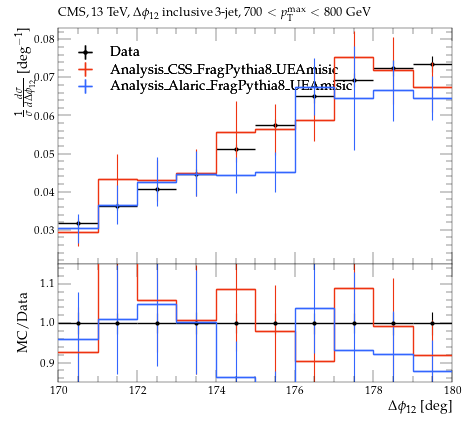

📊 d15-x01-y01:

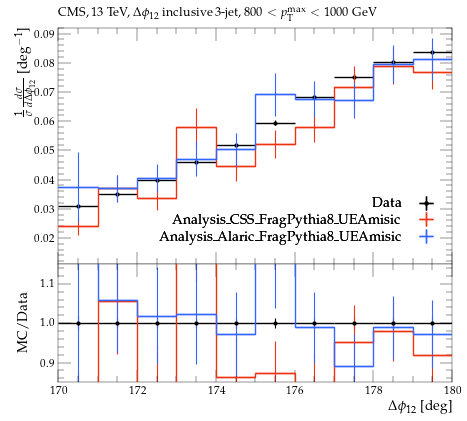

📊 d16-x01-y01:

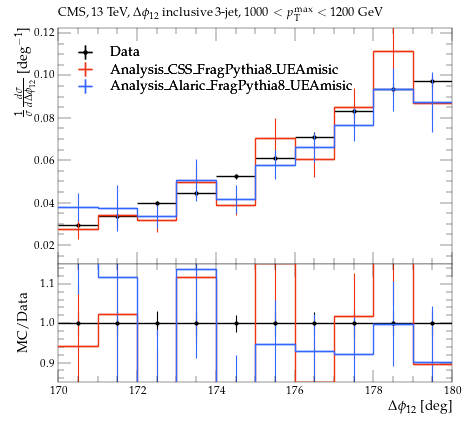

📊 d17-x01-y01:

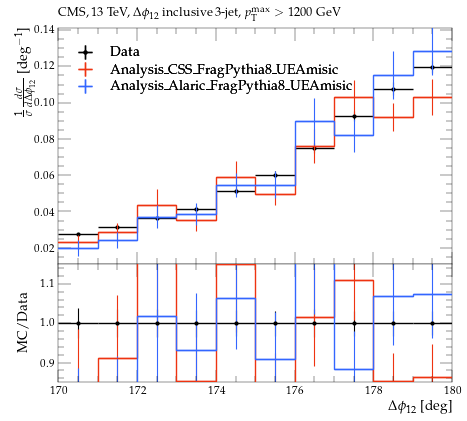

📊 d18-x01-y01:
